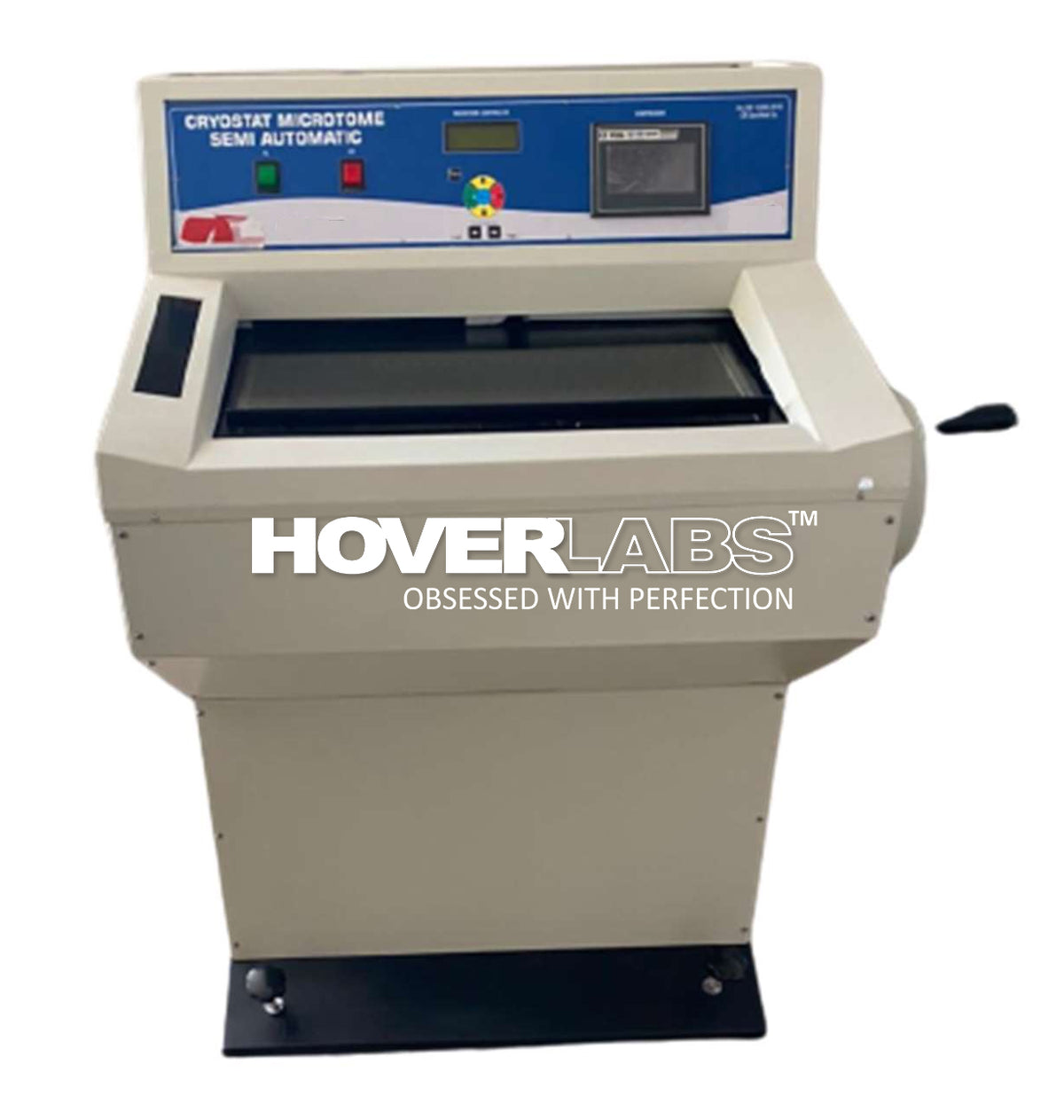

Semi-Automatic Cryostate Microtome (Model: HV-19S)
Technical Specification: -
Semi-automatic cryostat microtome is used for cutting Tissues at Low Temperature.
· Dual compressor for rapid freezing.
· Arbitrary switching b/w trimming& Sectioning
· Adjustable Cutting angle
· Portable with 4 castors
· Blade holder with finger safety
· Enclosed drainage system
· Anti-roll device
· Frost free encapsulated microtome assembly
· Visible operating parameter at all time
· No. of Freezing section: 10
· Trimming range: 1-600mm
· Lowest temperature unit: -40°
· Quick Freeze shelf: ≤-50°
· Max. specimen size: 35x35mm
· Vertical Specimen stroke: 65mm
· Horizontal Specimen feed: 25mm
· Cooling downtime to: -40°C
· Specimen Orientation: 8°(X-Y Axis)
· Motorized Coarse feed: 480mm/sec
· Voltage: 220V
· Section thickness Range- 1-100 mm
· Increment Range (I-IV):
· From 1-5mm in 0.5 mm increments
· From 5-20mm in 1 mm increments
· From 20-60 mm in 5 mm increments
· From 60-100 mm in 10 mm increments
· Cryo chamber temperature: -1 to -40°C adjustable.
· Specimen Retraction: 5-75 mm in 1 mm increment.
Internal Code: - KD.4109.260521
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
