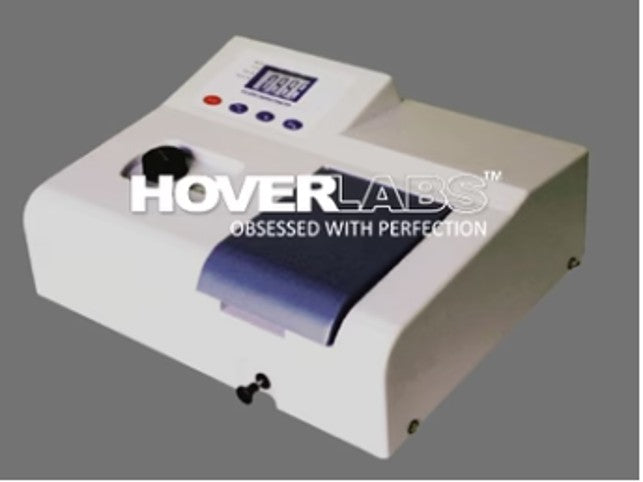

Single Beam Microprocessor UV-VIS Spectrophotometer (Model: HV-29)

Single Beam Microprocessor UV-VIS Spectrophotometer

(Model: HV-29)

Range 195 to 1000 nm with facility for automatic concentration, % Transmission, Absorbance & K Factor measurement. It has sample holder with 4 position selector control for 10 mm path length cuvettes. Facility has been provided for interface with any printer (RS232). Set of 2 quartz and 4 glass cuvettes is provided

Technical Specifications:

Wavelength Range: 200 - 1020 nm

Spectral Bandwidth: 2nm

Optical System : Single Beam, grating 1200 lines/mm

Wavelength Accuracy : ± 1 nm

Wavelength Repeatability : 2.0 nm

Wavelength Resolution : 2.0 nm

Photometric Accuracy : ± 0.5 %T or 0.003 A@1A

Photometric Range : - 0.3 to 2A, D - 200 %T, D - 9999 Cone.

Stray Light : < 0.3 %T

Stability : ± 0.002 A/h @500 nm

Display : LCD

Keyboard : Soft Touch Membrane Keys

Photometric Mode : % Transmission, Absorbance and Concentration

Detector : Silicon Photodiode

Sample Compartment: Standard 4-Position 10 mm path-length

Light Source : Tungsten and Deuterium Lamps

Output : RS 232/USB for PC Connectivity

Power : 230 V±10% AC, 50 Hz

Internal Code: - KD. 2802-R.251209
