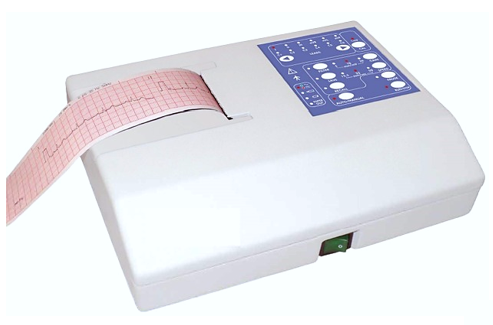

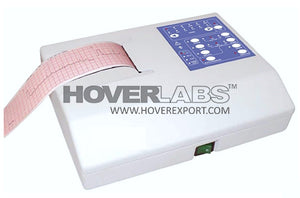

Single Channel ECG Machine (Electrocardiograph) (Model No. HV-ECG-101)
Single Channel ECG Machine (Electrocardiograph)
Resting ECG System With Auto-Measurements
Features:
- Compact and light weight
- One touch operation for all 12 leads
- Automatic and Manual modes
- Last patient's ECG storage
- Paper-out Indication
- Indication for Battery Status, Charging and AC/DC operation
- Auto Base line control to optimize ECG lead printing
- Measurements: HR (bpm), QT/QTC, QT/RR(%), RR, QRS, QT, QTC, PR (intervals), P/QRS/T axis
Technical Specifications:
ECG
A/D Resolution : 10 Bit
Lead selection : Standard 12 leads
Filters : Low pass filter: 35, 100 Hz
High pass filter: 0.05 Hz
Notch filter 50 Hz (on / off)
Acquisition : Auto / Manual
Memory : Last Patient
Input impedance : >100 M ohm
Frequency Response : 0.05-100 Hz
CMRR : 100 dB
Time Constant : 3.2 sec.
Sensitivity : 5 mm/mV, 10 mm/mV, 20 mm/mV
Leakage Current : < 10 micro Ampere
Recording & Printing
Recorder : Thermal Printer
Paper Speed : 12.5mm/sec., 25mm/sec., 50mm/sec.
Recording paper : Thermo sensitive 50mm (Rolled)
Printing Labels : Patient Information Template, Leads, Calibration, Print Speed, Filter, Sensitivity
Print-out Format : Single channel
Power Supply
Line Power supply : ~220 - 240V, 50Hz ± 10%
Power Supply Operation : AC/DC with on / off line Battery charging
Battery : 12V / 1.2AH
Charging Time : 2 Hours
Mechanical
Dimensions : 227mm X 168mm X 55mm
Weight : 1.45 Kg approx.
General
Type of Protection : Class II A
Degree of Protection : Type BF
Environmental Conditions
Storage Conditions:
Temperature : 0 - 40°C
Non-condensing humidity : O - 80%
Operating Conditions:
Temperature : 0 - 35°C
Safety & Regulatory
Standards
EN ISO 14971 :2000 + A 1 :2003, EN ISO 13485:2003, EN 980:2003,
EN 60601-1 :1990/A1 :1993, EN 60601-1-2:2001, EN 60601-2-25:1995
Directives
MOD - 93/42/EEC
EMC - 89/336/EEC
Component | Quantity |
ECG Patient Cable | 01 |
Adaptor 19V, 3.4A, AC-DC | 01 |
Power Cord | 01 |
Fuse T 1.5 A | 01 |
Earthing Wire | 01 |
Bulb Electrode | 06 |
Limb Electrode | 04 |
Conducting Tube Jelly | 01 |
Thermal Printer Paper Roll | 01 |
User Manual | 01 |
