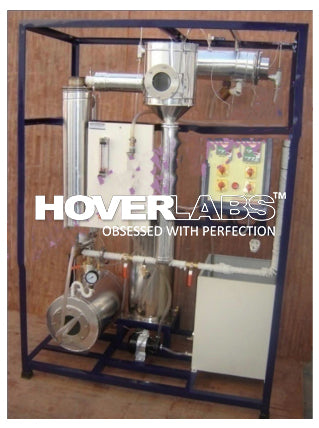

Single Effect Evaporator/Rising and Falling Film Evaporator (Model No. HVO-HT-21)

Single Effect Evaporator

Description

Evaporation deals with the concentration of a non-volatile solute from a solution by the removal (If requited amount of volatile solvent. Usually, the solvent is water. By vaporizing part of the solvent, useful product. i.e. the concentrated solution or thick liquor is produced, and the vapor is discarded. Long tube evaporators are usually used for the concentration of foamy liquids.
The set-up consists of stainless-steel tubes surrounded by a stainless-steel jacket and fitted with accumulator. Dilute solution is feed to tubes. Steam from a steam generator is supplied to shell to concentrate the dilute feed solution to a desired level. The jacket is fitted with a steam trap and the condensate is collected at the end of trap. The vapours of volatile solvent are condensed in a shell & tube type condenser and the balance nonvolatile solute collected in the accumulator is recycled through the evaporator.

Experiments

• To concentrate a solution and to evaluate the following at steady state:

• Material and Heat Balance

• Economy and the capacity of the evaporator

• Overall heat transfer co-efficient.

Features

• Superb Painted structure
• Simple to operate & maintain

Utilities Required

• Water supply 5 lit/min (approx.) and Drain

• Electricity Supply: I Phase, 220 V AC, 4 kW.
• Required Chemicals.

 Technical Specification

*The whole set-up is well designed and arranged in good quality painted structure.
