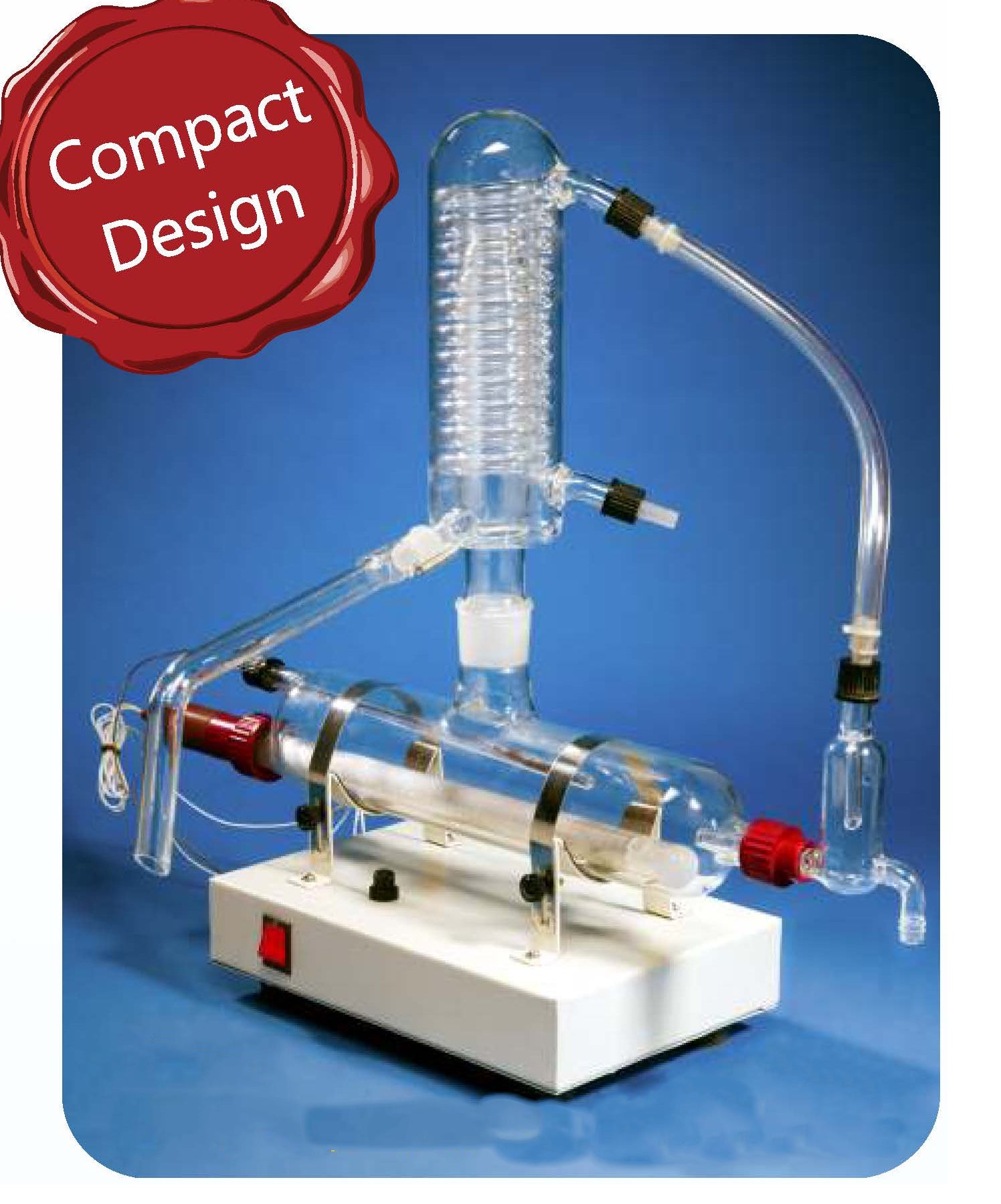

Single Stage Quartz Distillation Horizontal -2 Ltr & 5Ltr (Model: HV-SQD Series)
Single Stage Quartz Distillation Horizontal -2 Ltr
Features:
- Replaceable Silica Heater: The Horizontal Quartz Jacket is fitted with removable silica heater and screw threaded connectors for ease of cleaning when scaling is formed.
- Distillate temperature is around 25 to 45°C which is ensured by an efficient condenser.
- The stand is powder coated for rust free operation and lustrous appearance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply.
- Boiler is provided with Teflon Screw Cork for easy draining and
cleaning of boiling chamber.
Technical Specifications:
- Borosilicate Condenser
- Output Cap. (Approx.): 2 ltr/hr
- Power Rating (Total): 1.7 Kw
- Cooling Water Consumption (Approx.): 35 ltr/hr
Single Stage Quartz Distillation Horizontal -5Ltr
Features:
- Replaceable Silica Heater: The Horizontal Quartz Jacket is fitted with removable silica heater and screw threaded connectors for ease of cleaning when scaling is formed.
- Distillate temperature is around 25 to 45°C which is ensured by an efficient condenser.
- The stand is powder coated for rust free operation and lustrous appearance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Electrical Power: 220/240 V, 50/60Hz, Single Phase Supply.
- Boiler is provided with Teflon Screw Cork for easy draining and
cleaning of boiling chamber.
Technical Specifications:
- Borosilicate Condenser
- Output Cap. (Approx.): 5 ltr/hr
- Power Rating (Total): 3.4 Kw
- Cooling Water Consumption (Approx.): 70 ltr/hr
Internal Code: - KD.2620.25104
