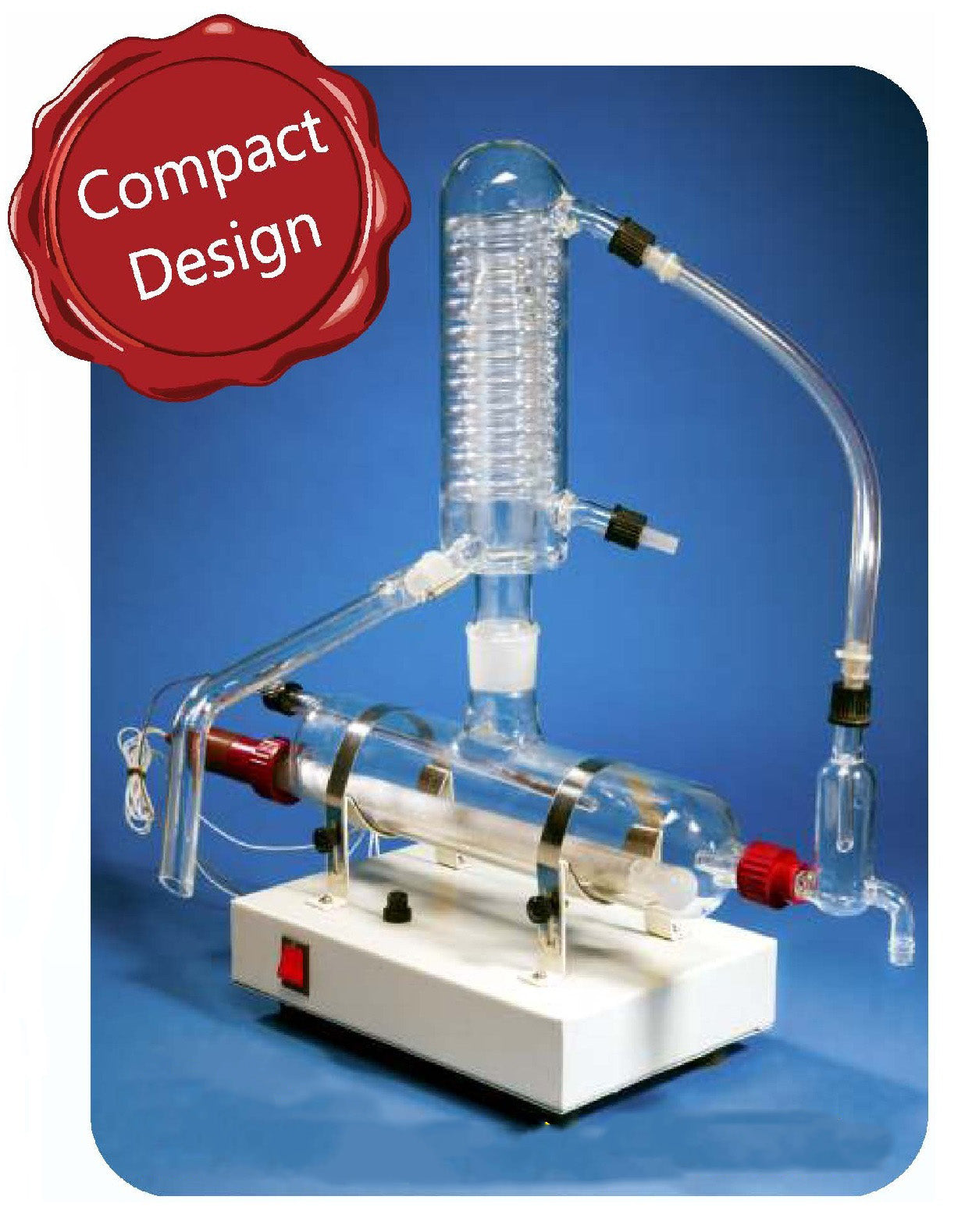

Single Stage Quartz Distillation (Model: HV-20B)

Single Stage Quartz Distillation (Model: HV-20B)

Technical Specifications:

-  Borosilicate Condenser

-  Output Cap. (Approx.):  2 ltr/hr

-  Power Rating (Total):  1.7 Kw

-  Cooling Water Consumption (Approx.):  35 ltr/hr

Features:

• Replaceable Silica Heater: The horizontal quartz jacket is fitted

with removable silica heater and screw threaded connectors for

ease of cleaning.

• Distillate temperature is approx. between 25° to 45° C which is

ensured by an efficient condenser.

• The stand is powder coated for rust free operation and lustrous

appearance.

• The unit automatically switches off if water level in the boiler falls

below heater.

• Cooling water from the condenser is re-circulated into the boiling

chamber, hence saving energy.

• Fuse is provided for safety in case of voltage fluctuation or short

circuit.

• Electrical Power: 220/240 V, 50/ 60Hz, Single Phase Supply.

INTERNAL CODE: - KD. 2583.25919
