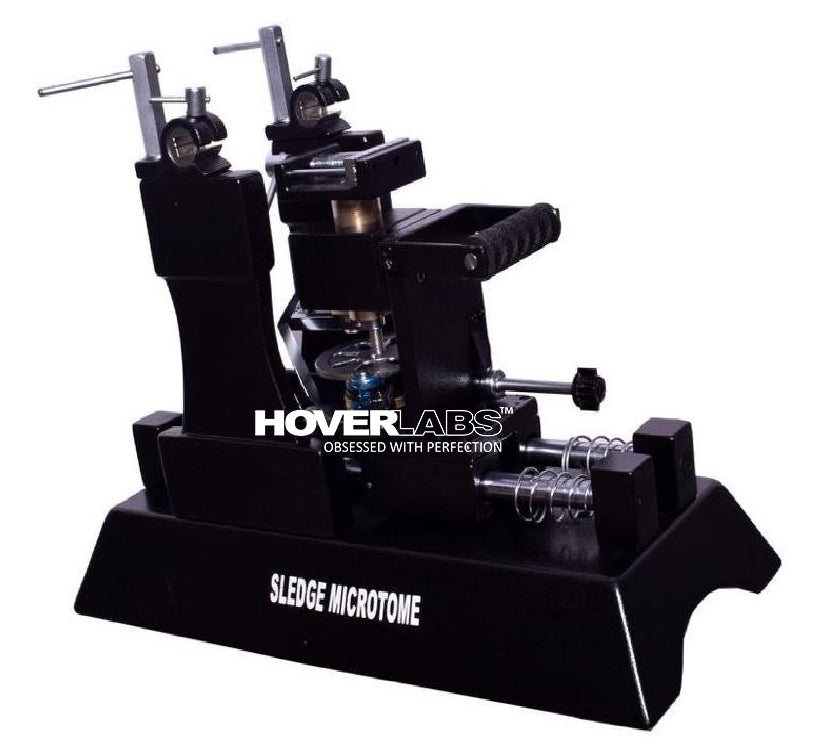

Sledge Microtome (Model: HV-SM-17)

Sledge Microtome (Model: HV-SM-17)

Sledge microtome is designed for cutting large block of paraffin and resin Embedded material including whole organs for light microscopy. The Knife holding clamps allow the knife to be offset to the direction of cut a major advantage when sectioning large hard blocks.

Technical Specifications:

· Heavy casted base machined, precision ground. The base & slider are

finished with durable powder coating paint.

· Simple action of pushing & pulling slider forward and back using the

operating handle.

· Unique design of the handle more action of pushing & pulling automatically

advances & retracts the specimens.

· With automatic feed mechanism with micron feed from 0-20/1-50 micron in step of 1 micron for cutting hard & large paraffin specimens.

· Heavy duty model to avoid vibration during cutting section

· Knife holder holds microtome knife of 200mm special tool steel fabricated

Extra wide object holder vise

· Smooth movement on stainless steel rails

· Supplied complete with one Knife, having back & handle in box, one bottle of lubricating oil and dust cover, instruction manual, block 3pc in wooden box.

Internal Code: - KD. 2788.251203
