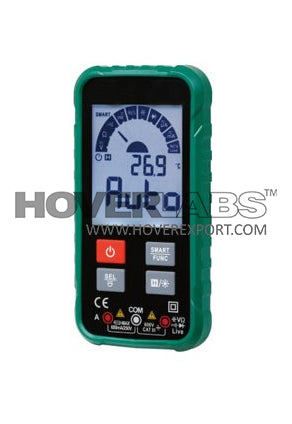

Smart Digital Multimeter

Specification:

Function: DC Voltage

  • Range: 60mV/600mV/6V/60V/600V
  • Resolution: 0.01mV/0.1mV/0.001V/0.01V/0.1V
  • Accuracy: ±(0.5%+3)

Function: AC Voltage

  • Range: 60mV/600mV/6V/60V/600V
  • Resolution: 0.01mV/0.1mV/0.001V/0.01V/0.1V
  • Accuracy: ±(1.0%+3)

Function: DC Current

  • Range: 6000μA/60mA/600mA
  • Resolution: 1μA/0.01mA/0.1mA
  • Accuracy: ±(1.2%+3)

Function: AC Current

  • Range: 6000μA/60mA/600mA
  • Resolution: 1μA/0.01mA/0.1mA
  • Accuracy: ±(1.5%+3)

Function: Resistance

  • Range:
600Ω/6kΩ/60kΩ/600kΩ
6MΩ/60MΩ
  • Resolution:
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ
0.001MΩ/0.01MΩ
  • Accuracy:
±(1.0%+5)
±(1.5%+3)

Function: Capacitance

  • Range:
6nF/60nF/600nF/6μF/60μF/600μF
6mF/60mF
  • Resolution:
0.001nF/0.01nF/0.1nF/0.001μF/0.01μF/0.1μF
0.001mF/0.01mF
  • Accuracy:
±(4.0%+5)
±(5.0%+5)

Function: Frequency

  • Range:
10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz
10MHz
  • Resolution:
0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01 kHz/0.1kHz
0.001MHz
  • Accuracy:
±(1.0%+3)
±(3.0%+3)

Function: Duty cycle

  • Range: 1~99%
  • Resolution: 0.1%
  • Accuracy: ±(3.0%+3)
  • Diode measurement: open circuit voltage 2.0V
  • Continuity measurement: <50Ω
  • Power: 2x3V CR2032 batteries
  • Dimension (LxWxH): 133ˣ68ˣ18 mm
  • Weight: 178 g

Features:

  • Automatically identify test modes for AC voltage /DC voltage/resistance/continuity
  • Non-connection AC voltage detection and judge the strength by light and buzzer
  • Self-calibration when power on to ensure accuracy
  • LIVE firewire recognition
  • Display with backlight
  • True RMS measurement
  • Data Hold
  • Low Battery indication
  • Auto power off
  • Safety rating: CAT III 600V

Standard Delivery:

  • Main Unit: 1Pc
  • Test Lead: 2Pcs
  • Battery (CR2032): 2 pcs
