Product details

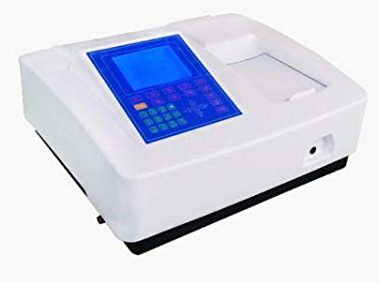

Spectrophotometer (Model: HV-2704)
Þ Optical System Double Beam, Grating 1200 lines/mm
Þ Wavelength Range190nm - 1100nm
Þ Spectral Bandwidth1nm
Þ Wavelength Accuracy<=+/0.1nm (656.1nmD2), <=+/0.3nm (full wavelength Range)
Þ Wavelength Repeatability0.1nm
Þ Photometric Accuracy±0.3%T(0~100%T)
Þ Photometric Repeatability0.001Abs(0~0.5Abs)
Þ Photometric Range<=0.02%T (220nm, nal,340nm NaMO2)
Þ Stray Light±0.0004 A/H@500nm
Þ Stability±0.001A
Þ Baseline Flatness0.0003 A/H
Þ Noise Fast, Mid, Slow, Scanning Speed AUTO
Þ Wavelength Setting Membrane Keypad
Þ Keyboard Deuterium & Tungsten Lamp
Þ Light Source0.1nm, Wavelength Resolution A, T, C
Þ Photometric Mode Silicon Photodiode
Þ Detector USB Portand parallel port (Printer)
Þ Interface AC 220V/50Hz or AC 110V/60Hz
Þ Power<=+/0.0004A bs/h
Þ Dimension545x468x245mm
Þ Weight18kg
Þ Drift<=+/0.0004A bs/h
Þ Cell Holder2 Cell Holder
Internal Code: - KD.6012.220415
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
