Study of Pipe Fittings, Sudden Enlargement & Contraction Apparatus
Description

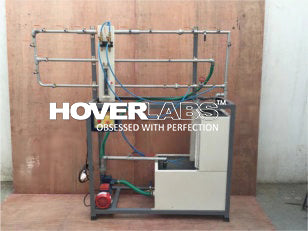

The set up consists of a 1/2 bend and elbow, a sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fittings. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.
Experiments
- To determine loss of head in the fittings at various water flow rates
- To measure the loss coefficient for the pipe fittings
Features
- Choice of Test Section
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks and wetted parts
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electric supply 0.5 kW, 220V AC, Single ϕ
- Water supply Tap water connection ½”
BSP Distilled water @ 60 liters (optional)
- Floor Area with Drain facility
Technical Specification
|
Test Section |
Sudden Enlargement From 15mm to 25mm Sudden Contraction From 25mm to 15mm Fittings Size ½” Bend, Elbow, Mitre Bend, Ball valve, Gate valve |
|
Water Circulation |
FHP capacity make Crompton / Kirloskar |
|
Flow Measurement |
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale |
|
Piping |
MOC GI and PVC |
|
Sump Tank |
Capacity 50 Ltrs. MOC SS |
|
Stop Watch |
Electronic |
|
Control Panel |
On/Off Switch, Mains Indicator etc. |
|
Overall Dimensions |
(L x B x H) 1800 x 420 x 1700 mm |
Apparatus for determine Frictional losses in straight pipe, pipe fitting, with S.S. sump tank, S.S. measuring tank, S.S. pump, Manometer & suitable piping & fittings with pressure tappings.
