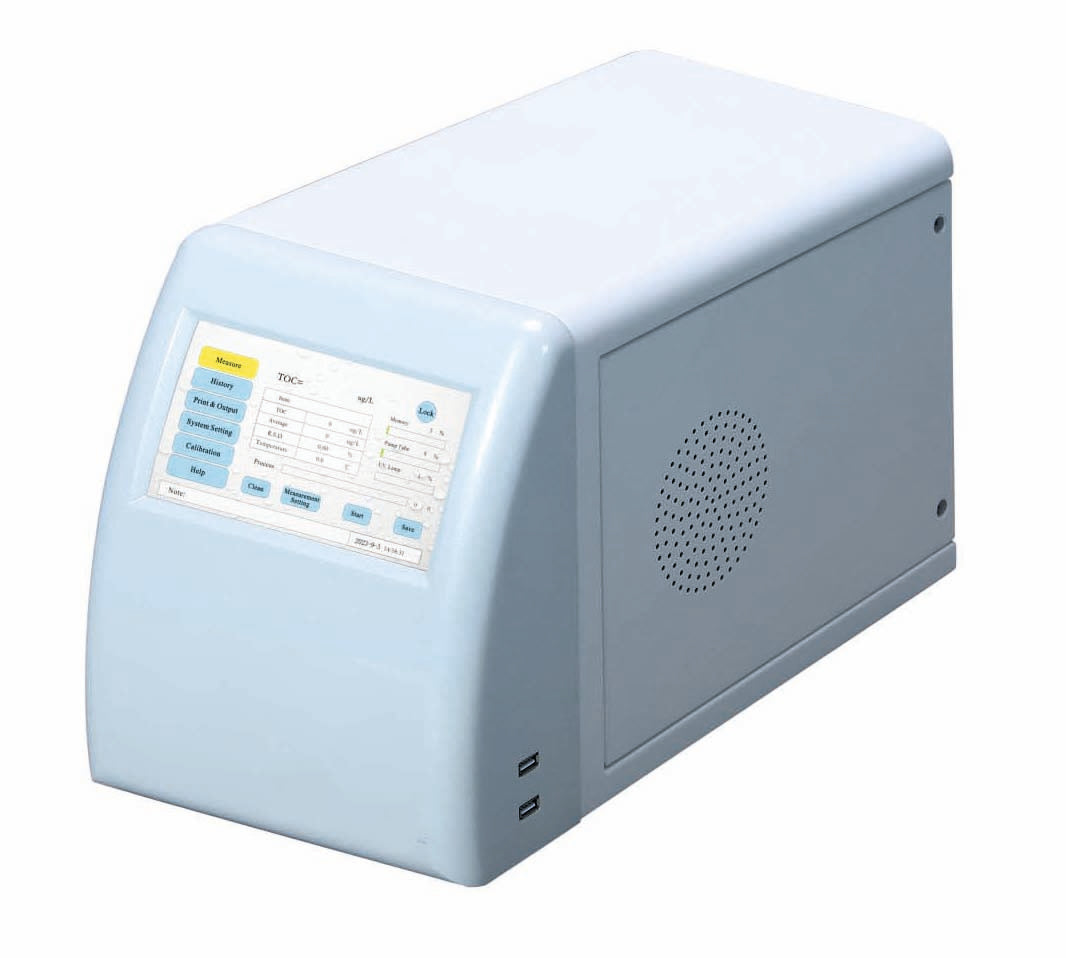

Total Organic Carbon Analyzer (Model No: HVO-TOC-1000)

Total Organic Carbon Analyzer (Model No: HVO-TOC-1000)


  • Rs. 1,002,675.00

Total Organic Carbon Analyzer

Total Organic Carbon Analyzer (TOC) are widely used in various industries and research fields to measure the concentration of organic carbon in water samples. These analyzers provide valuable information for quality control, environmental monitoring, and research purposes. HVO-TOC-1000 works under off-line mode, Ideal choice to measure and monitor Microelectronics Water, Purified Water, Water for Injection, etc.

Salient Features

  • Equipped with Conductivity detector to quantify TOC Concentra on
  • Automatic sample introduction with enter of trace sample, we can control the value of the trace sample. No contamination & safe for user & environment
  • UV oxidation by UV lamp, no need to add acid, gas or catalytic. Its reduce experiment and maintenance cost.
  • 7 inches Touchscreen easy to operate and read test data.
  • The system is password protected & in compliance with 21CFR Part11 Requirements.
  • 8GB large storage memory which does not restrict data and me.
  • Quick Test & Analysis in Less than 3 minutes.
  • Clear historical records which is traceable according to analysis date.
  • Data can be retrieved and saved to USB directly.
  • Equipped with Bluetooth printer which is easy to operate and print quickly.
  • Modular design ensures quick installation and easy maintenance.
  • Auto sampler is optional which can be used for testing various different samples without any man power.


  • Detection Range - 0.001 - 1.500mg/I (ppm).
  • Detection limit: 1ppb
  • Max Tolerance:  ±5%
  • Repeatability Tolerance:  ≤ 3 %
  • Analysis Time:  <3 min
  • Measurement Range: 1ug/L -1000 ug/L
  • Response Time:  within 10 min
  • Sample Temperature:  1-95℃
  • Environment Temperature:  10-40℃ with temperature change ±5 ℃/day
  • Mode: Offline
  • Software: In-Built
  • Auto Sampler: Optional
  • Interface: USB
  • Relative Humidity: ≤ 85%
  • Display: 7" color Touchscreen
  • Memory: 8G capacity, and no limitation for storage time
  • Power: 100W
  • Power Supply: AC 220V,50/60Hz
  • Dimension (LxWxH): 440 x 220 x 300mm
  • Gross Weight:  21kg


  • TOC Analyzer
  • Power Cable
  • Bluetooth Printer
  • Print Paper
  • Cross Screw
  • Fuse, Software
  • USB Cable
  • Instruction Manual
  • Test Certificate
