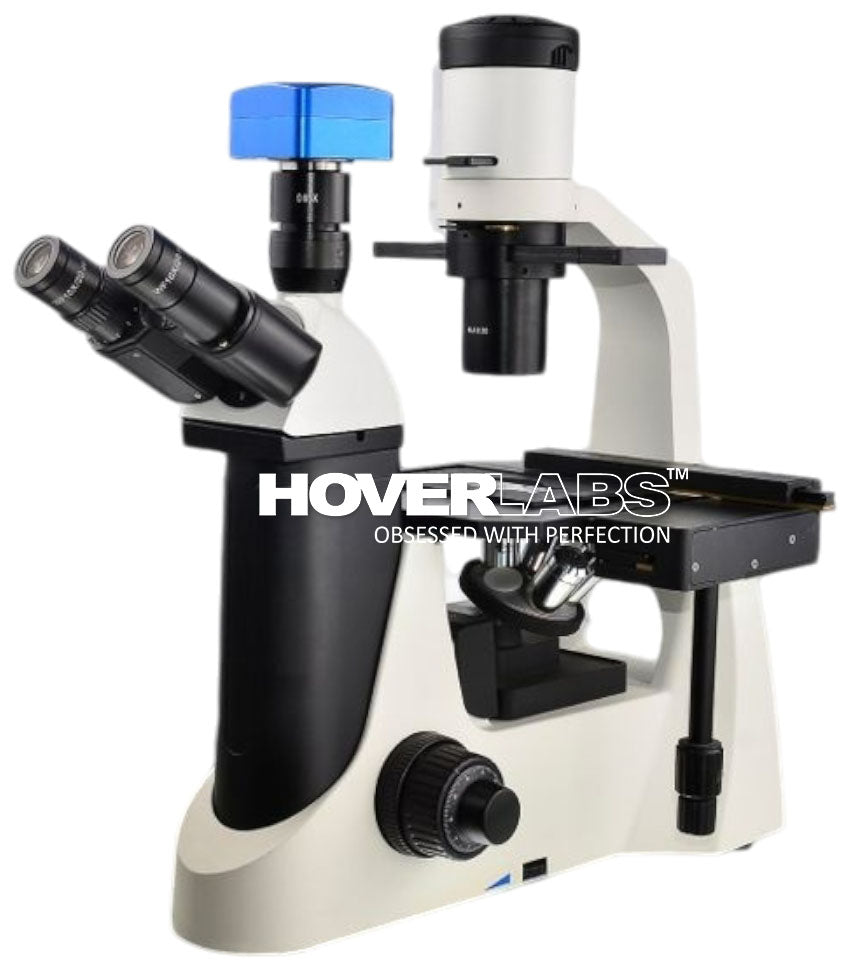

TRINOCULAR INVERTED PHASE CONTRAST & INVERSION CONTRAST MICROSCOPE WITH Hi RESOLUTION CAMERA

TRINOCULAR INVERTED PHASE CONTRAST & INVERSION CONTRAST MICROSCOPE WITH Hi RESOLUTION CAMERA

(MODEL: HV-CT12)

TECHNICAL SPECIFICATIONS:

•         Infinity corrected Inverted Microscope with Phase Contrast & Bright field,

•         Quadruple nose piece, coaxial coarse & fine focus with tension adjustment mechanism,

•         LED light illumination with Voltage/Power 2.25V/2.8W, Lifetime 20,000hours,

•         Wide field Trinocular Head with field No.22mm with Light intensity ratio observation: Camera port 100:0/0:100,

•         Wide field eyepiece 10X F.N.22mm.

•         XY Mechanical Stage with Lifting type Micro plate holder & options for various stage inserts.

•         Right-handed Mechanical stage with low drive controls with Petri-dish, Terasaki - plate & Slide glass holders, Including see through glass stage insert plate.

•         Pre centered Phase Contrast Slider for 4x, 10X 20X & 40X objectives,

•         Plan Achromat 4X,

•         Long working distance 10X Achromat Phase objective (pre centered) working distance 8.8mm,

•         Long working distance 20X Achromat Phase objective (pre centered) working distance 3.2mm,

•         Slit for both phase contrast, inversion contrast observation- Slider

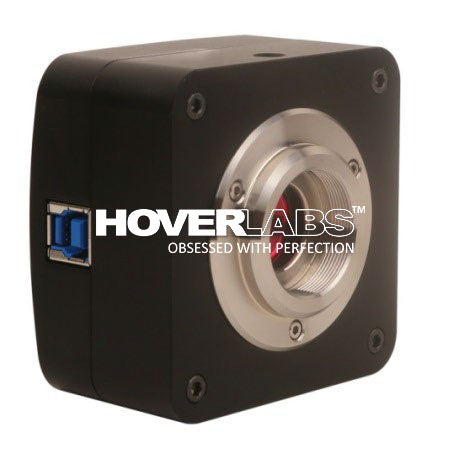

Hi Resolution Camera with 4K image resolution

•         8.9MP color digital camera,

•         4K resolution at 32 frames per second (fps), 4104 x 2174

•         64 fps (full HD) can provide up to 64 fps full

•         Camera Sensor 1-inch Color CMOS chip,

•         Pixel size 3.45 μm x 3.45 μm,

•         Interface- USB3.1 Type-C

•         Shutter - Global shutter

Microscope frame upgradable to Fluorescence attachment

INTERNAL CODE: - KD.2340-25-26
