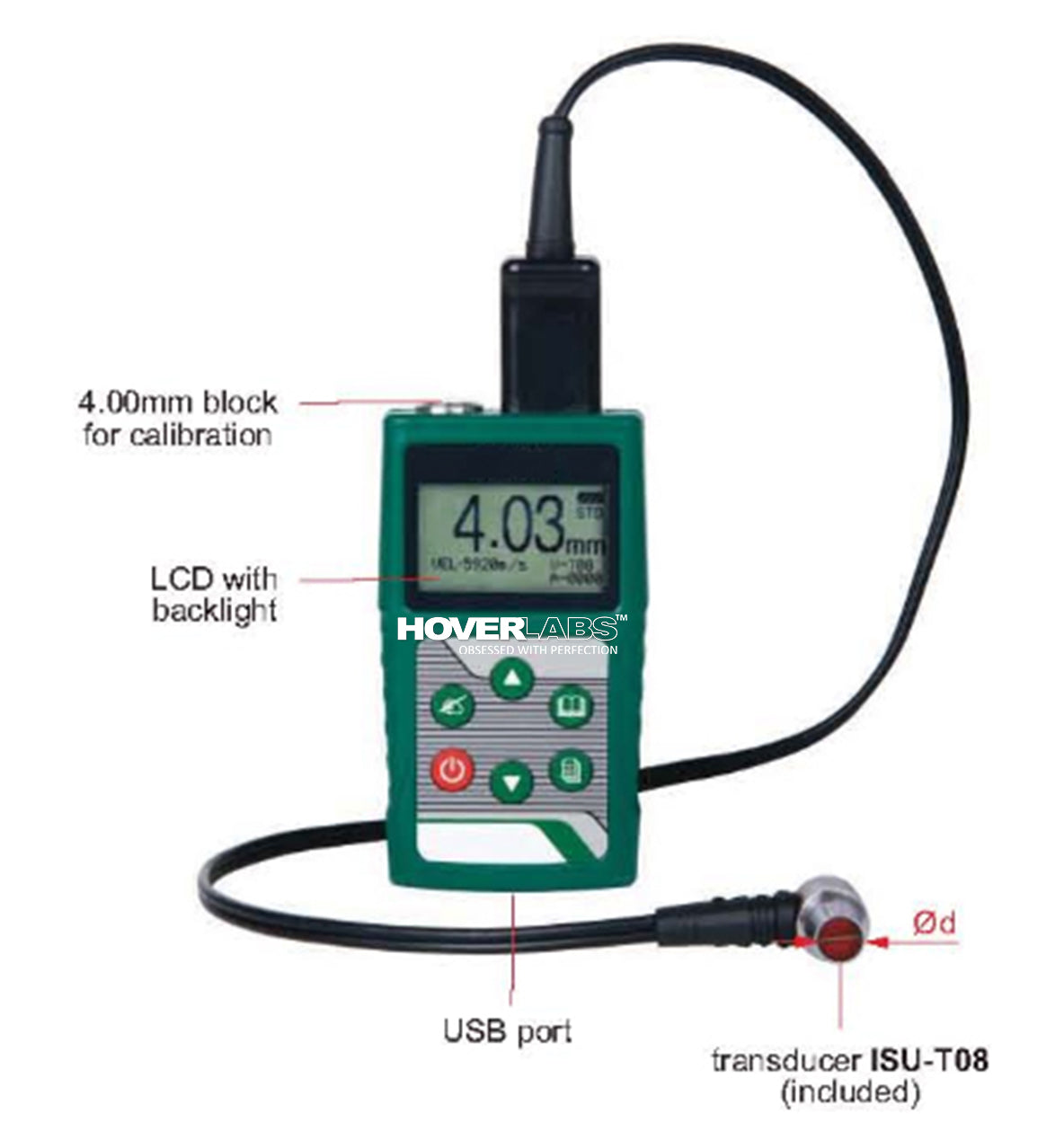

ULTRASONIC THICKNESS GAUGE (BASIC TYPE) (Model: HV-250C)

ULTRASONIC THICKNESS GAUGE (BASIC TYPE)

(Model: HV-250C)

Technical Specifications:

- Measure the thickness from one side of objects, suitable for pipes, tanks, etc.

- Applicable material: metal, plastic, glass, nylon, resin, ceramic, ice

- Tolerance measurement

-  Average calculation of 9 readings

- Data can be input to Excel and Word as keyboard signal

SPECIFICATION (ON STEEL)

Measuring range Resolution: refer to specification of transducers

Accuracy: 0.1/0.01mm

±0.04mm (H<10mm)

+(0.04+H/1000) mm (10≤H<100mm) +H/333mm (H≥100mm)

H is the thickness to be measured in mm

Velocity:1000-9999m/s

Operation temperature of main unit: -20~50°C

Output: USB

Measuring unit:mm/inch

Power supply: 2x1.5V AAA batteries

Dimension:64×116×27mm

Weight:220g

Internal Code: - KD.2843.251220
