Product details

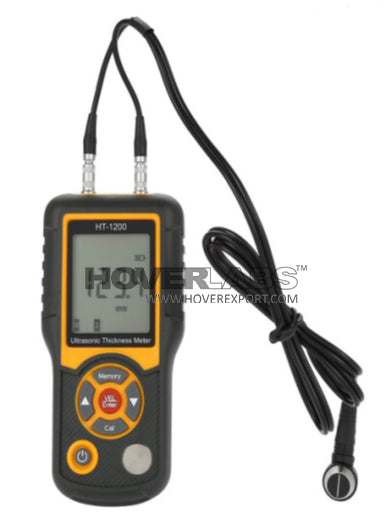

Ultrasonic Thickness Gauge
Specification
- Display mode: Four-digit LCD display.
- Working frequency of the probe: 5MH
- Range: 1.5~225mm (steel)
- Resolution ratio: 0.1mm
- Measurement accuracy: ±(1%H+0.1) mm, H is the object thickness.
- Lower measurement limit of pipes: Φ20×3mm
- Sound speed adjustment scope: 1000~9999m/s
- Measuring sound speed with known thickness:
- Measurement Scope:1000~9999m/s; When thickness of measured objects is ≤20mm, the precision of sound speed measurement is ±1mm/H*100%; when the object thickness is > 20mm, precision of sound speed measurement is±5%.
- Power supply: 3 x 1.5V AA alkaline batteries
- Working temperature: 0~40℃
- Relative humidity: < 90%RH
- Storage temperature: -10~50℃
- Workpiece temperature: < 60℃
- Working current: < 100Ma
- Measurement accuracy: ±(1%H+0.1) mm, H is the object thickness.
Product Internal Code: 6458
