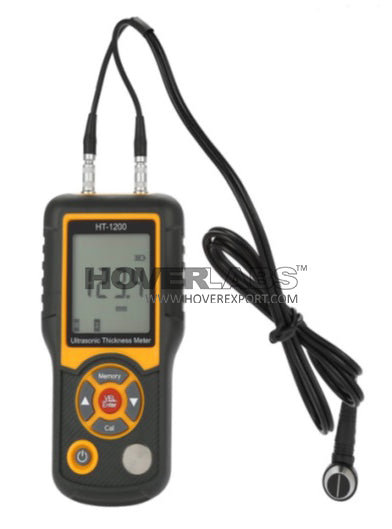

Ultrasonic Thickness Gauge (MODEL NO:- HV-1401)

Ultrasonic Thickness Gauge

BRAND: HOVERLABS

MODEL NO: HV-1401

Þ Display mode: Four-digit LCD display.

Þ Working frequency of the probe: 5MH, Range: 1.5~225mm (steel), Resolution ratio: 0.1mm, Measurement accuracy: ±(1%H+0.1) mm, H is the object thickness. Lower measurement limit of pipes: Φ20×3mm

Þ Sound speed adjustment scope: 1000~9999m/s

Þ Measuring sound speed with known thickness: Measurement scope:1000~9999m/s; When thickness of measured objects is ≤20mm, the precision of sound speed measurement is ±1mm/H*100%; when the object thickness is > 20mm, precision of sound speed measurement is±5%.

Þ Power supply: 3 x 1.5V AA alkaline batteries

Þ Working temperature: 0~40℃, Relative humidity: < 90%RH

Þ Storage temperature: -10~50℃, Workpiece temperature: < 60℃, Working current: < 100Ma

Þ Measurement accuracy: ±(1%H+0.1) mm, H is the object thickness.

Internal Code: - KD.6458.230206
