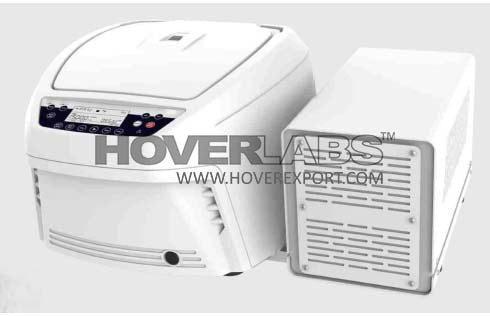

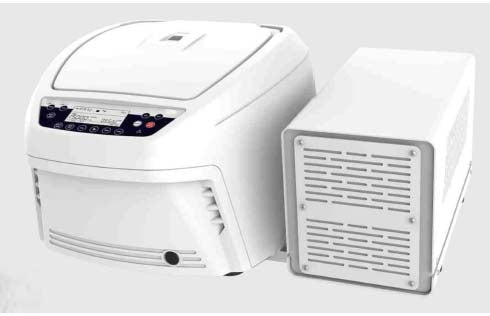

Universal Refrigerated Lab Centrifuge (Model No: HVO-UC-02R)

Universal Refrigerated Lab Centrifuge

Model No: HVO-UC-02R

• Brushless DC motor for maintenance free long life
• Microprocessor controlled centrifuge with variable speed and time setting and also with last run memory function
• Max capacity 4 x 100 ml (swing out & fixed rotor)
• Variable speed from 500 to 15000 RPM
• Single equipment for different work protocols with appropriate choice of rotors (swing out and fixed angle)
• Separate refrigeration unit for easy maintenance
• Large back-lite LCD display for easy setting & reading of multiple parameters (Speed & Time)
• Adjustable ramp & brake speeds (up to 9 speed selection)
• User programmable (user can set up to 99 Programs with 4-line programs)
• Auto rotor detection feature
• Refrigeration temperature up to -l0°C
• Drainage line to remove accumulated condensed water
• All rotors are with positional labeling, rotor cat-code, rotor expiry date, RPM/RCF (speed), rotor capacity
• CE Certified

Specifications:

• Rotor Capacity (Max): 4x 100 ml (fixed & swing out)
• Max RPM / RCF (xg): 15000 RPM / 22388 g (g varies as per rotor)
• Motor Type: Brushless DC motor
• Refrigeration Temperature: Up to -l0°C
• Display: Digital display
• Speed Setting: 500 to 15000 RPM
• Time Setting: 30 secs to 999 mins 59 sec & infinite mode
• Lid Lock Safety & Imbalance Detection; Yes
• Adjustable Ramp & Brake: Selection from 1 to 9
• Dimension (L x W x H): 705 x 585 x 330 mm

• Weight of Equipment: 57 kgs without rotor
• Rotors: Multiple rotor options (swing out and fixed angle)
• Voltage/ Consumption: 230 V /920W
