Product details

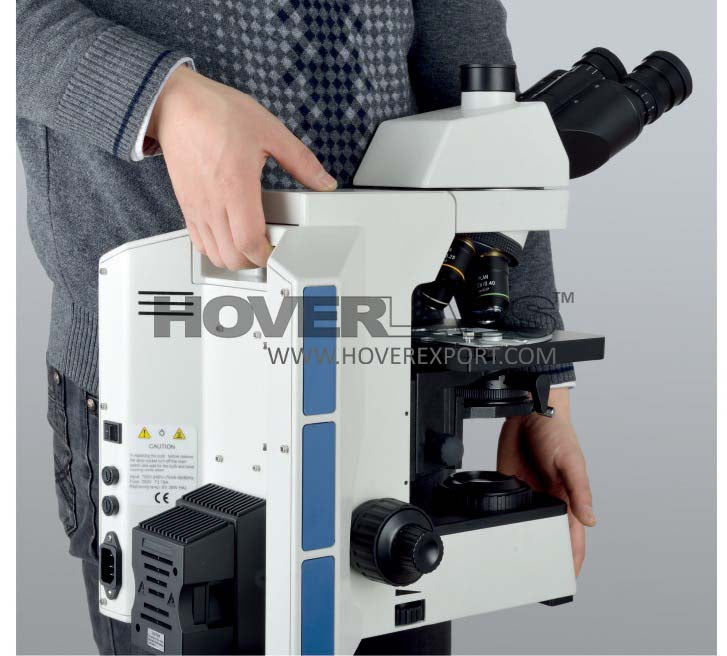

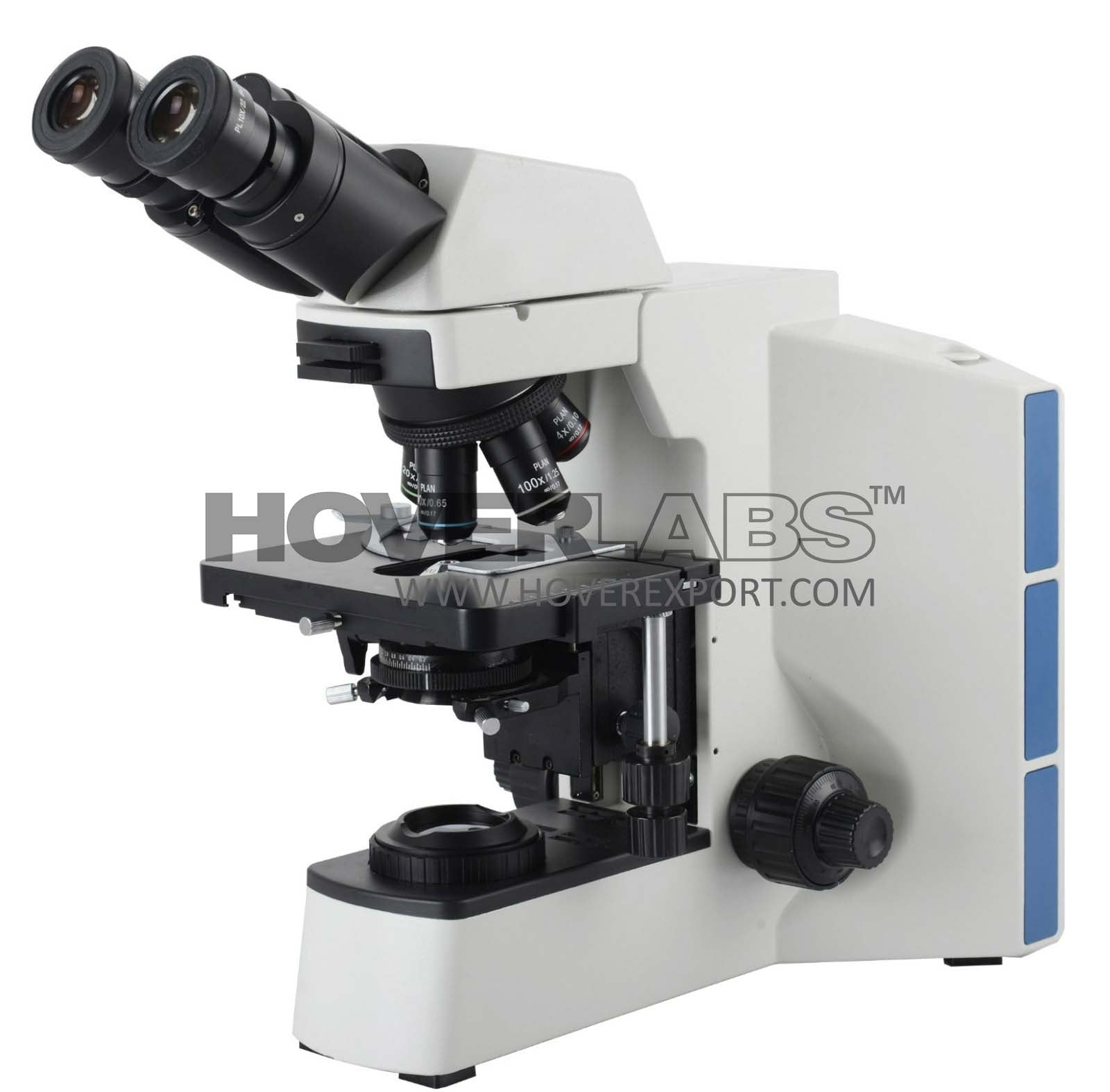

Upright Trinocular Research Grade Phase Contrast Biological Microscope (Model No. HV-X40)
Technical Specifications:
|
Trinocular research grade Phase Contrast biological microscope, Model : HV-X40 |
X40 with Camera | ||||||
| NAME | DESCRIBE | Quantity | |||||
| Eyepiece | High point eyepiece，wide-field plan eyepiece PL10X/22mm with reticle | 2 | |||||

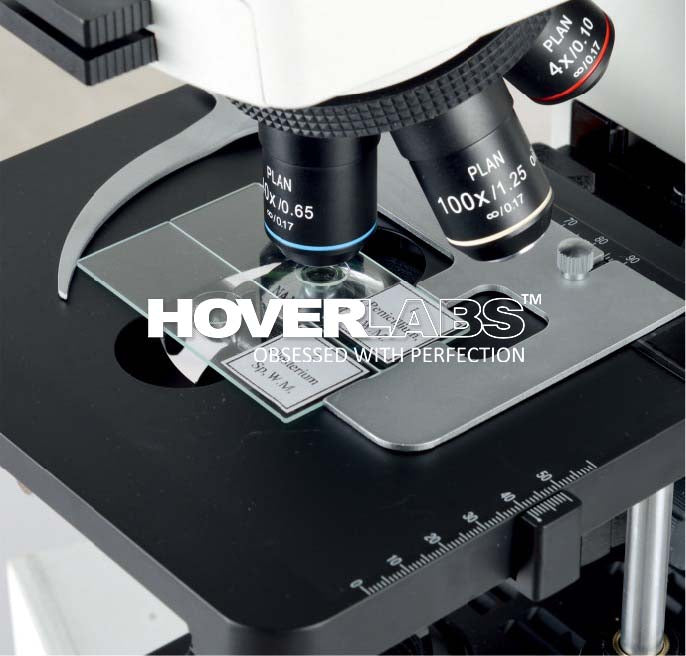

| Objective | Plan achromatic objective 4X/0.10 （infinity）,WD=11.9 | 1 | |||||
| Plan achromatic objective 10X/0.25 （infinity），WD=12.1 | 1 | ||||||
| Plan achromatic objective 20X/0.4 （infinity），WD=1.5 | 1 | ||||||
| Plan achromatic objective 40X/0.65（infinity），WD=0.36 | 1 | ||||||
| Plan achromatic objective 100X/1.25 （infinity），WD=0.18 | 1 | ||||||
| Plan positive phase contrast objective 10X/0.25(Infinity), WD=12.1mm | 1 | ||||||
| Plan positive phase contrast objective 20X/0.5(Infinity), WD=1.5mm | 1 | ||||||
| Plan positive phase contrast objective 40X/0.65(Infinity), WD=0.36mm | 1 | ||||||
| Plan positive phase contrast objective 100X/1.25(Infinity), WD=0.18mm | 1 | ||||||
| Viewing Head | 30° inclined gemel tirnocular， 360°rotatable， interpupillary distance：54mm-75mm，diopter adjustment：±5mm，splitting ratio R: T=50:50 or 0:100 | 1 | |||||
| Nosepiece | Reversed quintuple nosepiece | 1 | |||||
| Stand | Coaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable. | 1 | |||||
| Stage | 175X145mm double layer mechanical stage, rotatable;with special fabrication processing, anti-corrosive and anti-triction;moving range: 76X50mm, precision: 0.1mm | 1 | |||||
| Condenser | N.A.1.2/0.22 swing-out type achromatic condenser | 1 | |||||
| N.A.1.25 quintuple phase contrast condenser (Infinity) BF+PH10X+PH20X+PH40X+PH100X | 1 | ||||||
| Bulb | 3W LED lampe house | 1 | |||||
| C-adapter | Suitable C mount adopter | 1 | |||||
| Live Microscopic Camara | 4K8MP | 1 | |||||
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
