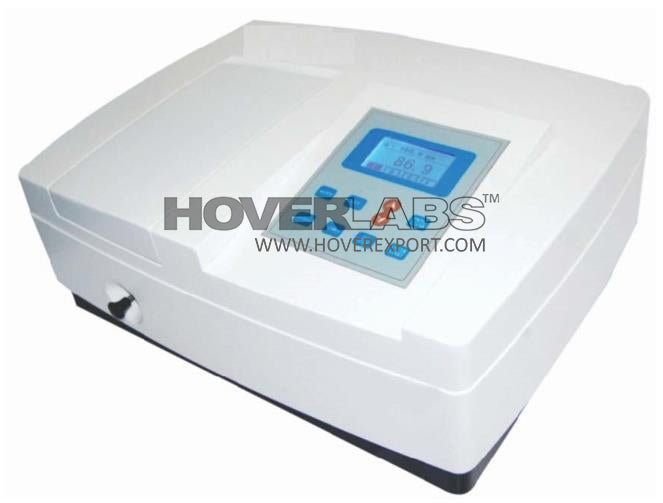

UV SPECTROPHOTOMETER (MODEL NO. HVS-VS-151)

UV SPECTROPHOTOMETER

(MODEL NO. HVS-VS-151)

TECHNICAL SPECIFICATIONS: -

1. Digital microprocessor controlled Double Beam UV VIS Spectrophotometer with automatic scanning and fully controlled by external PC using Windows based software and working stand alone

2. Operating Mode: Transmittance (%), Absorbance and Concentration

3. Light Source; Tungsten-halogen and deuterium lamp with selectable switching facility

4. Wavelength Range: 190-1100 nm range

5. Wavelength Accuracy: better than or equal to ± 0.3 nm

6. Wavelength Repeatability; better than or equal to± 0.2 nm

7. Wavelength Range: 1 nm or smaller

8. Scan Speed; 5 to 3000 nm/min / fast/ medium/ low

9. Photometric accuracy: - ±0.3%T, Photometric Repeatability; 0.2%T

10. Photometric Range; -0.3 - 3A,0-200%T, 0-9999C

11. Noise Level; ±0.001 A/h or better

12. Stray Light Less than 0.05 %T @220 nm & 360 nm

13. Stability; ±0.001Mi@500 nm, Data output port USB

14. Detector; Silicon Photodiode, Power Supply; AC 220V/50Hz

15. It provided with following accessories

UPS: One No. of required capacity, Dust Cover: Two set, Operation Manual: Two set, Matching Quartz Cuvettes; One pairs

16. It supply with computer and Laser printer. Processor & Chipset: Intel 12th generation or higher Core i5 6500 (3.2 GHz clock speed, 6MB Cache) or Higher, intel UMA graphics Memory: 1 X 16 GB DDR4 Memory Speed: Minimum 3200 MHz or higher Memory Slot: Minimum 2 Free Memory Slot SSD: 1 TB PCle SSD Monitor: 27" FHD, resolution 1920X1080 Keyboard and mouse: wireless standard Audio: Dual 2w speakers, digital microphone Operating systems: Windows 11, Microsoft office 2021 Ports: 2 USB 2.0 type A, 2 USB type A 5Gbps signalling rate, 1 USB type C 5Gbps signalling rate, I RJ 45 HDMI output interface Warranty: warranty of 3 years from the date of installation and commissioning of the All in One Compute Printer Cum Xerox system. Bluetooth 5.3, WIFI 6,

INTERNAL CODE: - KD.25613
