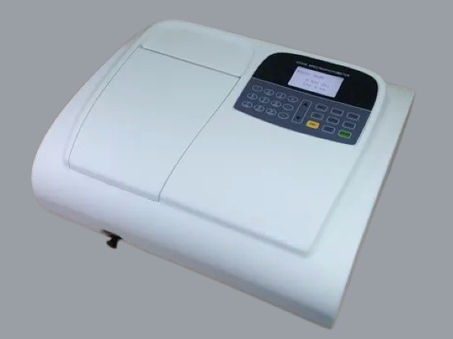

UV - VIS. Spectrophotometer - Single Beam (Model No. HV-SPUV-1200)

UV - VIS. Spectrophotometer - Single Beam (Model No. HV-SPUV-1200)

HOVERLABS

  • Rs. 143,391.00
8

UV - VIS. Spectrophotometer - Single Beam

Salient Features:

Numerical Keys

Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.

8MM Thick Optical Base

The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

Standard Curve

Can set up various standard curves according to customer's solutions and find the concentration of unknown solutions

Auto Setting Wavelength

Users set wavelength automatically through arrow keys to avoid operation errors.

Data Output

HV-SPUV-1200 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.

Imported High Quality Deuterium Lamp

  • This instrument uses imported flanged deuterium lamp with low stray light, photometric accuracy and easy replacing
  • Data can be restored after a sudden power cut.
  • Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life
  • Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders

Specifications:

  • Wavelength Range: 190-1100nm
  • Bandwidth: 2nm
  • Optical System: Single Beam, Grating 1200 lines / mm
  • Wavelength Accuracy: ±0.8nm
  • Wavelength Repeatability: ±0.2nm
  • Wavelength Setting: Auto
  • Photometric Accuracy: ±0.3%T
  • Photometric Repeatability: 0.2%T
  • Photometric Range: -0.3-3A,0-200%T
  • Stability: ±0.001A/h @ 500nm
  • Baseline Flatness:  ±0.002A/h
  • Stray Light:  0.05 % T
  • Data Output: USB
  • Printer Port: Parallel Port
  • Display: LCD
  • Cell Holder: 10 mm 4 position cuvette holder
  • Lamps: D2 Lamp & Tungsten Halogen Lamp (W Lamp)
  • Detector: Silicon Photodiode
  • Power Supply: AC 220V/50Hz
  • Dimension (LxWxH) mm: 460x360x225mm

Standard Accessories:

  • Software: 1Pc.
  • 10mm Glass Cuvette: 4Pcs.
  • 10mm quartz cuvette: 2Pcs.
  • Power Cord: 1Pc.
  • Instruction Manual: 1Pc.
  • Dust Cover: 1Pc.
