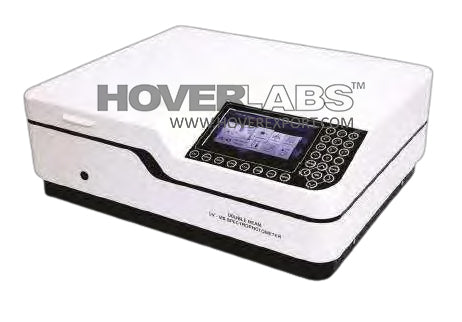

UV-VISIBLE SPECTROPHOTOMETER (MODEL NO. HVS-VS-151)

UV-VISIBLE SPECTROPHOTOMETER

(MODEL NO. HVS-VS-151)

TECHNICAL SPECIFICATIONS: -

The UV-Visible Spectrophotometer is a critical analytical instrument used for measuring the absorption or transmission of ultraviolet and visible light by a sample. It plays a significant role in various fields, including chemistry, biology, environmental science, and pharmaceutical industries. The following specifications outline a PC-controlled, true double-beam UV-Visible spectrophotometer that meets stringent performance standards for accurate and reliable results.

PC controlled true double beam UY-Visible Spectrophotometer with Tungsten & Deuterium Source Lamps quoted with below mentioned specifications

• Czerny- Turner mounting monochromatic system.

• The Detector Silicon photo iodide

• System photometric system with True Double beam optics.

• Wavelength range of the system minimum from 190 to 1100 nm

• Wavelength Accuracy ±0.3 nm for full range.

• Photometric Range of the system -3 to +3

• Spectral Band width 2nm.

• Photometric Accuracy: ±0.003 Abs.

• Scanning speed/ wave length slew rate: about 15000 nm/min.

• Software: System quoted with compatible original Licensed Software capable to Measure

Absorbance and Transmittance at the full or selected Wavelength with real-time spectral

displays and live instrument and accessory status bar.

• Cuvertes with 3.5 ml volume, 10mm path length - 4 Pair (Quartz) provided.

• Computer: Computer of standard make should be supplied with mentioned specification:

Processor: i5, 8GB RAM, 1TB hard drive; LED colour monitor (20"), 101 keys keyboard, LAN and internet inbuilt facility, Mouse and Mouse P.3d, with latest version of windows (Genuine) based operating software, Multifunctional LaserJet Printer.

• UPS Capacity: 3KVA UPS with sealed and maintenance free batteries 30 minutes battery backup.

This UV-Visible Spectrophotometer offers high performance, precision, and reliability, making it an ideal choice for laboratories requiring detailed and accurate spectrophotometric analysis. The provided system specifications ensure robust, long-term operation while also offering comprehensive training and support to ensure smooth integration into laboratory settings.

INTERNAL CODE: - KD.25614
