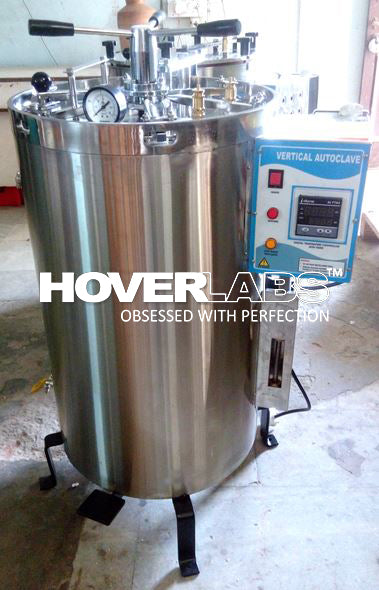

Vertical Autoclave, Radial Locking (Model No. HV-105-AC)

Vertical Autoclave Radial Locking

Construction :

• The outer chamber is made of heavy gauge Stainless Steel Sheet duly polished.
• The inner chamber is made of thick 304 Grade Stainless Steel Sheet.
• Lid made of thick machined high grade Stainless Steel plate.
• The unit has Radial Locking arrangement duly chrome plated with paddle lifting mechanism.
• Unit is provided with Spring Loaded Safety Valve, Pressure Gauge, Pressure Release Valve, Water Level Indicator & Drain Valve.
• Unit is hydraulically tested to withstand upto 40 psi pressure, operating pressure upto 20 psi.
• All internal joints are Argon arc welded, ground and polished to give crevice free internals.
• Molded joint-less Silicon Rubber Gasket is provided for leak proofing.
• The unit is electrically heated by flange type/immersion type heaters.
• Supplied with Control Box fitted with Mains & Heating Indicators, ON / OFF
• Switch, Cord & Plug to work on 220/230V, 50Hz AC supply.
