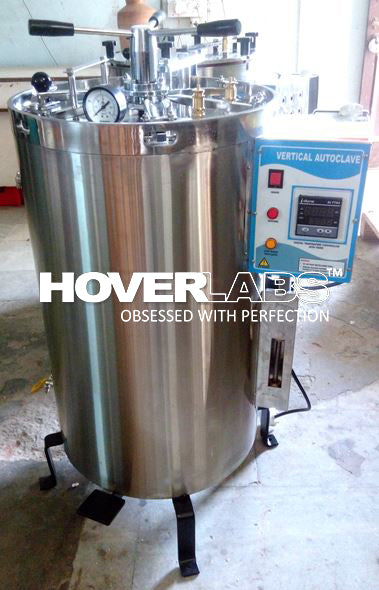

Vertical Autoclave Radial Locking Fully Automatic (Model No. HV-101-AC)

Vertical Autoclave Radial Locking Fully Automatic

Construction :

• The outer chamber is made of heavy gauge MS Sheet lined with heavy gauge SS Sheet.
• The inner chamber is made of thick 304 Grade Stainless Steel Sheet.
• Lid is made of thick machined high grade Stainless Steel plate.
• The unit has RaDial Locking arrangement made of high grade SS duly polished with paddle lifting mechanism.
• Unit is provided with Spring Loaded Safety Valve, Pressure Gauge, Pressure Release Valve, Water Level Indicator & Drain Valve.
• Unit is hydraulically tested to withstand upto 40 psi pressure.
• All internal joints are Argon arc welded, ground and polished to give crevice free internals. Molded joint-less Silicon Rubber Gasket is provided for leak proofing.
• The unit is electrically heated by flange type/immersion type heaters.
• Supplied with Control Box, fitted with Mains & Heating Indicators, ON / OFF Switch, Cord & Plug to work on 220/230V, 50Hz, AC supply.

Fully Automatic :

Microprocessor based Controller with user programmable time and temp ; Low water level alarm and cut off for safety of heaters ; Sensor open alarm and display ; End of cycle buzzer to alert the user and auto reset ; Solenoid Valve for Automatic Purging and Exhaust (user settable).
