Vertical Bench Center (Model No. HVO-4728-360)

Vertical Bench Center

Specification:

• Parallelism: 0.01mm
• Center height: 130mm
• Diameter of Center: Ø24.1mm
• Runout accuracy: 2µm
• Distance between two centers (D): 360mm
• Taper of center: MT3
• Weight: 85kg
• Load: 80kg

Features:

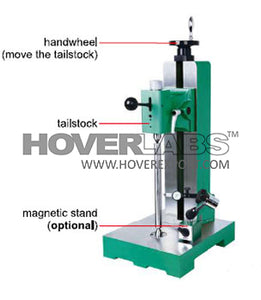

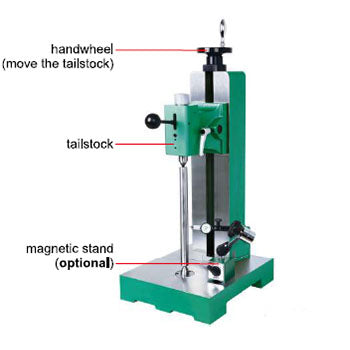

• Hardened cast-iron guide surface
• Use handwheel to move the tailstock
• Optional Accessory: Magnetic Stands, dial test indicators

*Parallelism of two centers to the guide surface
