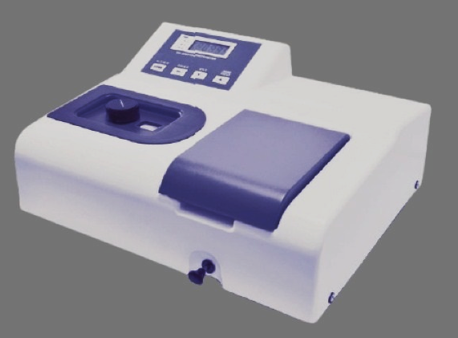

Visible Spectrophotometer Microprocessor Based (Model No. HV-39)

Salient Features :

• Large Sample Room to Place 50mm Cuvette
• Digital Display of %T, Abs and Cone.
• Auto Light Door and Zero Setting
• Compact Design
• Covers 320 - 1020 nm

Specifications :

• Optical System : Czerny-turner CT grating monochromator, 1200 lines/ mm
• Wavelength Range : 320-1020nm
• Spectral Bandwidth : 4nm
• Wavelength Accuracy : 2nm
• Wavelength Repeatability : ≤2nm
• Measurement Range : -0.000 to 1.999A , 0-199.9%
• Photometric Accuracy : ±1%T
• Photometric Repeatability : 0.5%T
• Measuring Optical Path : 50 mm
• Stray Light : ± 1.0%T (340 nm)
• Stability : ± 0.004 Nh(500 nm preheat 1 hour)
• Display Modes : 4 modes, LCD
• Basic Measurement : T, A, C, F
• Light Source : 6V10W
• Operating Voltage : 220V/11 OVAC,50-60Hz

Standard Accessories :

• Glass Cuvettes - A Set of 2
• Instruction Manual
• RS232 Cable for PC Connectivity
• Mains Lead
• Dust Cover
