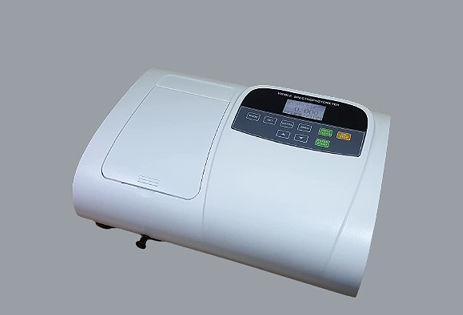

Visible Spectrophotometer (Model No. HV-SPV-325)
Visible Spectrophotometer
Salient Features:
Multiple Results Readout
Can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.
Auto Setting Wavelength
Users set wavelength automatically through arrow keys to avoid operation errors.
Standard Curve
Can set up various standard curves according to customer’s solutions and find the concentration of unknown solutions.
Data Output
HV-SPV-325 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen.
2.5” LCD Screen
Equipped with a 2.5 LCD screen to give a clear display of standard curves and groups of results.
Specifications :
- Optical System : Single beam, Grating 1200 lines/mm
- Wavelength Range : 325-1000nm
- Bandwidth : 4nm
- Wavelength Accuracy : ±1nm
- Wavelength Repeatability : ±0.5nm
- Wavelength Setting : Auto
- Photometric Accuracy : ±0.5%T
- Photometric Repeatability : ±0.3%T
- Photometric Range : 0.3-3A,0-200%T
- Stray Light : ≤0.3%
- Stability : ± 0.002A/h @ 500nm
- Display : LCD
- Detector : Silicon Photodiode
- Standard Cell Holder : 4-position 10mm cell holder
- Light Source : Tungsten Lamp
- Output : USB Port & Parallel Port(Printer)
- Power Supply : AC 220V/50Hz
- Dimension (LxWxH) mm : 420x280x180
Standard Accessories :
- Software : 1 pc.
- 10mm Glass Cuvette : 4 pcs.
- Power Cord : 1 pc.
- Instruction Manual : 1 pc.
- Black Block : 1 pc.
- Dust Cover : 1 pc.
