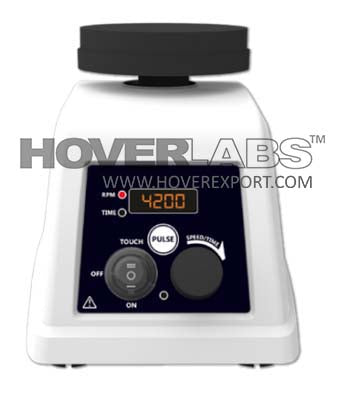

Digital Vortex Mixer (Model No. HVO-VM-VT)
Digital Vortex Mixer
Digital Vortex Mixer is a compact unit equipped with a powerful brushless DC motor that provides fast and efficient mixing with minimal vibration. Delivers a speed of 4200rpm, an orbital diameter of 4mm, and has a pulse mode function to increase the vertexing efficiency
- 3 way switch (On/Off/Touch)
- Brushless DC motor for maintenance free long life
- Orbital diameter of 4 mm
- Adjustable speed
- Inbuilt counterbalance for stable & safe operation
- Timer setting 0 to 999 minutes
- Digital display toggles between speed and time every S second
- Programmable pulse mode function
- Silent operation
- Robust construction for stable operation
- Programmable pulse mode function
- CE Certified
Technical Specification:
- Max RPM: 4200 RPM
- Orbital diameter: 4 mm
- Motor Type: Brushless DC
- Digital Display: Yes
- Speed Setting: 300-4200 RPM
- Timer Setting: Yes (min/sec)
- Max. Load Capacity: 500gm
- IP Rating: IP 21
- Ambient Temperature: 5 to 40°C
- Dimension (L x W x H): 205 x 136 x 138.5 mm
- Voltage/ Consumption: 24 V :-:-: 1.5A / 20W
- Weight: 3kgs
Product Features:
- Adjustable speed from 300 to 4200 RPM & timer setting
- Digital display – Shows speed and time alternatively at every 5 secs
- Unique programmable pulse mode function – User enabled run time and off time setting
- 3 way switch (On/Off/Touch) with Power On LED
- Orbital diameter of 4 mm
- Can be used in hoods & cold rooms
- Sticker indicator of permissible speed for various attachments
