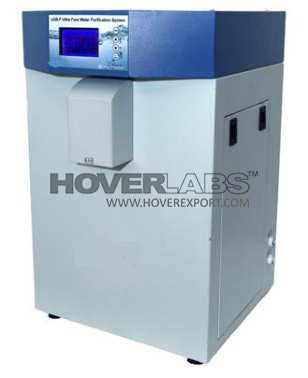

WATER PURIFICATION SYSTEM (Model: WPS-458C)

WATER PURIFICATION SYSTEM

(Model: WPS-458C)

Technical Specifications: -

Type: The system international standards which are Globally accepted

The Ultrapure water system capable of providing Type-1 and Type-II /Type-III water to perform all laboratory functions through one system like washing and rinsing of laboratory glass wares, General Chemistry, Autoclave feed, Buffer and media preparation, sample dilution, reagent preparation, spectrophotometry, Flame photometer and use of water in AAS, ICP, Ion chromatography, Liquid chromatography, molecular biology etc. The water purification system multiple quality sensors to regularly monitor both ultrapure and pure water. It also inbuilt periodic recirculation to minimize and retarded the production of biofilm.

Prefiltration: The Pre-filtration unit dual cartridge.

Suitable R.O. system with Flow rate of minimum 20 Litre per Hour with 100 Litre tank to be supplied along with main system, in order to increase consumables life and reduce running cost

Filtration System: There an integrated filtration system having Reverse Osmosis, Deionized filtration with ultra violet disinfection with final point of use filtration of 0.22 micron

Disinfection: The system UV lamp with emission at 185 nm and 254 nm wavelength.

Reservoir: There internal/external reservoir with minimum 6 ltr capacity or suitable.

Water dispensing System: The water purification system auto-volume dispensing function capable of dispensing desired volume of ultra-pure water between 0.1 Ltr to 6.0 Ltr or more.

Dispensing Flow Rate: Type-1 Water1.2 Ltr/Minute Display: Graphic Colour LCD Display

Recirculation of Water. The system re-circulate water through u.v and purification components to maintain high water quality whenever dispensed.

All purification modules from OEM only. All required certificates (UL, CE and ISO) and brochures of the quoted product provided along with bid documents.

RO based water purification system with temperature control dispensing unit.

• One-year warranty on complete electronic and mechanical components of the

system provided.

TECHNICAL SPECIFICATIONS:

Product Water Quality: Ultrapure (Type I) water specifications

Resistivity- 18.2 M2.cm @ 25°C

• Dispense flow rate-Up to 1.2 V/min

• TOC-<5 ppb

• Bacterial TVC-<0.1 cfu/ml

• Particulates- 0.2um filtration

• pH- Effectively neutral

• Pure (Type II) water specification-

• Resistivity-1 M.cm @ 25°C

• TOC-<50 pbb

• Bacterial TVC- <100 cfu/ml

• RO-permeate (Type III) water specifications-

• Conductivity- <20 μS/cm

• TOC- <20 μS/cm

• Bacterial TVC-<1000 cfu/ml

• Ionic rejection- >96%

• Particulates and Bacteria rejection- >99%

• Organic rejection-(MW200 Da): >99%

INTERNAL CODE: - KD.2333.2575
